Bonve 4G Rotary Lobe Pump for PVC Resin Transfer
Enhanced Structural Advantages
1.Full 316L Stainless Steel Construction: Exceptional wear resistance for abrasive PVC slurries, with surface roughness <0.8μm Ra to prevent material adhesion.
2.Flexible Installation: Multi-directional port configurations (left/right, top/bottom) adapt to constrained layouts, reducing pipeline modification costs.
3.Compact & Lightweight: 30% weight reduction vs. equivalent screw pumps, enabling easy integration into existing systems.
4.Quick Maintenance: Interchangeable rotors and CIP/SIP compatibility allow full disassembly in ≤10 minutes.
Problem-Solving Capabilities
Traditional single-screw pumps struggle with PVC resin's demanding properties:
1.Shear Degradation: Screw compression alters resin molecular structure
2.Pulsation: Inconsistent flow impacts downstream processes
3.Wear & Corrosion: Metallic contact accelerates component failure
4.Complex Maintenance: Extended downtime for screw replacement
Bonve's Engineered Solutions
Shear-Sensitive Handling
1.Bi-wing rotors with 0.1mm clearance maintain viscosity integrity (0-500 RPM adjustable).
2.Non-contact rotor design eliminates friction-induced heat (<5°C temperature rise).
Abrasion-Resistant Design
1.Hardened 316L rotors (HRC 55) withstand 15% solid content (particle size ≤5mm).
2.Six-bearing shaft system reduces radial/axial vibration, extending seal life by 3x.
Sealing Reliability
1.Double mechanical seals (SiC/SiC or TC/TC) with FKM elastomers ensure zero leakage under 1.2MPa pressure.
2.Patented shaft key synchronization prevents rotor collision during instant starts.
Performance Data
1.Efficiency: 40% lower energy consumption vs. screw pumps at 50m³/h flow rate.
2.Durability: 15,000-hour MTBF in 24/7 PVC slurry operations.
3.Consistency: <1% pulsation rate ensures stable extrusion feeding.
4.Cleaning: Full CIP cycle completed in 20 minutes (50% faster than screw pumps).
Industry-Specific Validation
Deployed in PVC calendaring lines, Bonve pumps demonstrate:
1.99.5% viscosity retention for plasticizer-blended resins.
2.90% reduction in unplanned downtime versus screw pump systems.
3.Compatibility with 10% calcium carbonate-filled compounds (d50=80μm).
This advanced pumping solution enables precise, low-shear transfer of PVC resins while delivering 60% lower lifecycle costs compared to traditional screw pump configurations.
Bonve lobe pumps basically consist of two lobe rotors, which rotate synchronously driven by a pair of synchronous gears in the gearbox. The rotors are driven by the main shaft and sub-shaft to rotate in a synchronous reverse direction, which changes the pump capacity, builds up high vacuum and discharge pressure, thus an efficient pumping is formed. Gap is kept between the rotors and between the pump casing, no friction, long life, no damage, no physical and chemical reaction to the pumped products.
· Bi-wing rotor diagram
·
· Tri-lobe rotors diagram
·
Main Parts of the Complete Pump

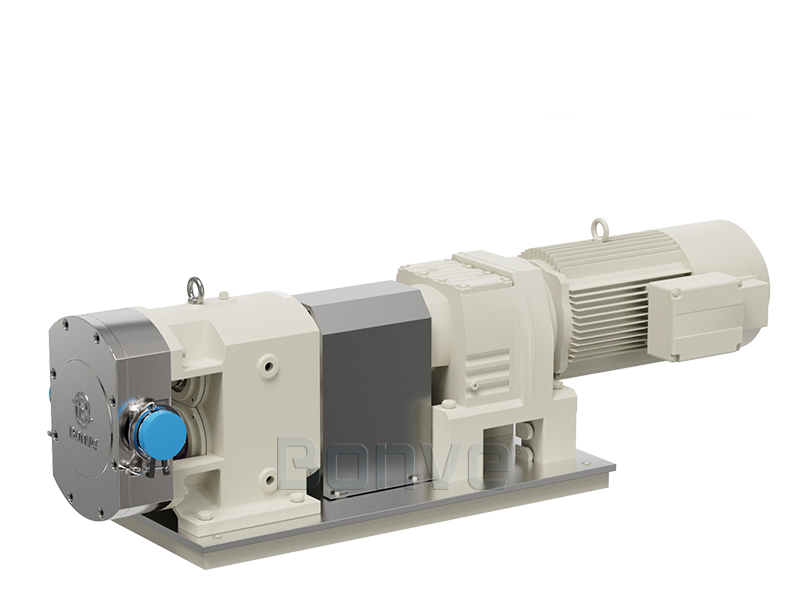

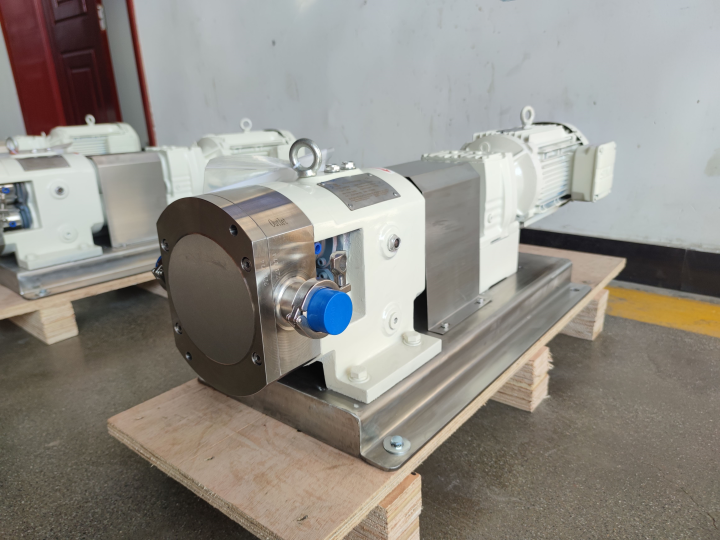

Bonve complete pumps are usually composed of bare shaft pump, coupling and its guard, geared motor and base plate. With your order, bare shaft pump or complete pump is supplied.
Bare Shaft Pump Structure
Structure Details
Bonve has an advantage over lobe pump that no other company can match.
1.Rotor:The error of the rotors processed by CNC is extremely small. The unique rotor perfectly seals the inlet and outlet of the pump. The vacuum degree of the pump is up to -0.095MPA. The rotor material and type can be selected according to the characteristics of the pumped product.
2.Shaft: The transmission shaft is processed by CNC machining center, which has characteristics of high precision, high bending strength and strong wear resistance.
3.Pump cavity: The pump cavity is sealed by a pump cover that can be opened quickly, enabling quick maintenance of the pump. The pump body is processed by CNC machining.
4.Gears:High-precision, High-Standard synchronous gears have good meshing, smooth transmission, low noise, and excellent bearing capacity.
5.Mechanical seal: The seal material and type are selected according to the characteristic of the pumped product, to ensure zero leakage, no pollution, and more environmental production.
6.Bearings: Six bearings arranged in a separate arrangement increase the concentricity of the pump operation, enhance the bearing capacity of the shaft and make the pump running more stable, thereby increasing the service life of the shaft and the mechanical seal.
7.Gear box: The gear box is processed by CNC, with high precision, high concentricity and strong versatility.
8.Spindle:We use splines the bearings and spindle, makes the pump less likely to slip. The high-precision spline makes the pump run more smoothly, and the service life is much higher than that of its peers.
Complete Pump Types
Technical Parameters
|
Model |
Displace -ment |
RPM |
Flow |
Dis. Pre. |
Power |
Vacuum |
Port size |
Max viscosity |
|
|
(L/r) |
(r/min) |
(m³/h) |
(Mpa) |
(kW) |
(Mpa) |
(mm) |
(cp) |
|
25BV12-05 |
0.06 |
10-1000 |
0-0.5 |
0-1.2 |
0.37-1.1 |
-0.080 |
25 |
1,500,000 |
|
40BV12-2 |
0.15 |
10-1000 |
0-2 |
0-1.2 |
0.75-2.2 |
-0.080 |
40 |
1,500,000 |
|
50BV12-5 |
0.32 |
10-800 |
0-5 |
0-1.2 |
1.5-4 |
-0.085 |
50 |
1,500,000 |
|
65BV12-10 |
0.65 |
10-600 |
0-10 |
0-1.2 |
2.2-7.5 |
-0.085 |
65 |
1,500,000 |
|
80BV12-20 |
1.74 |
10-500 |
0-20 |
0-1.2 |
4-15 |
-0.095 |
80 |
1,500,000 |
|
90BV12-30 |
2.60 |
10-500 |
0-30 |
0-1.2 |
5.5-22 |
-0.095 |
100 |
1,500,000 |
|
100BV12-40 |
3.65 |
10-500 |
0-40 |
0-1.2 |
7.5-30 |
-0.095 |
100 |
1,500,000 |
|
125BV12-50 |
4.60 |
10-500 |
0-50 |
0-1.2 |
7.5-37 |
-0.095 |
125 |
1,500,000 |
|
140BV12-70 |
6.10 |
10-500 |
0-70 |
0-1.2 |
11-45 |
-0.095 |
150 |
1,500,000 |
|
150BV12-80 |
7.63 |
10-500 |
0-80 |
0-1.2 |
11-55 |
-0.095 |
150 |
1,500,000 |
|
200BV12-120 |
11.56 |
10-400 |
0-120 |
0-1.2 |
15-75 |
-0.095 |
200 |
1,500,000 |
|
250BV12-150 |
14.22 |
10-400 |
0-150 |
0-1.2 |
18.5-90 |
-0.095 |
250 |
1,500,000 |
|
300BV12-200 |
20.80 |
10-300 |
0-200 |
0-1.2 |
22-110 |
-0.095 |
300 |
1,500,000 |
|
350BV12-300 |
32.60 |
10-250 |
0-300 |
0-1.2 |
45-160 |
-0.095 |
350 |
1,500,000 |
|
400BV12-400 |
50.40 |
10-250 |
0-400 |
0-1.2 |
55-200 |
-0.095 |
400 |
1,500,000 |
Note:
1. Tested medium: water. Your liquid's density, viscosity and temperature are necessary to supply when choose the pump.
2. Speed, flow rate, electrical power and pressure will be varified according to different liquid properties.
3. Port size can be changed as needed.
Selection Guidelines
|
Your Industry |
|
||
|
About pump medium |
Name: |
||
|
Density (g/m³): |
|||
|
Viscosity (mPa.s): |
|||
|
Temperature (℃): |
|||
|
PH value: |
|||
|
Solid content (%): |
|||
|
Solid size (mm): |
|||
|
Suction side |
Pressure: Positive ( ) bar; Negtive ( ) bar |
How high (m): |
|
|
Suction pipe length (m): |
Diameter (mm): |
||
|
Bends (Pcs): |
T-piece (Pcs): |
Valves (Pcs): |
|
|
Discharge side |
Pressure (Mpa): |
||
|
Vertical delivery pipe length (m): Total delivery pipe length (m): |
Diameter (mm): |
||
|
Bends (Pcs): |
T-piece (Pcs): |
Valves (Pcs): |
|
|
Required flow rate (L/H) |
Operating flow: |
Max. flow: |
|
|
Pump material required |
SS304 ( ) SS316 ( ) SS316L ( ) Duplex stainless steel ( ) |
||
|
Motor required |
Phase: Single ( ) Three ( ) |
Voltage (V): |
Frequency (Hz): |
|
IP grade: |
Energy efficiency: |
Anti-explosive: |
|
|
Installation type |
Fixed ( ) |
Movable ( ) |
% |
