EMULSIFYING AND HOMOGENIZING SHEAR PUMP
Product introduction

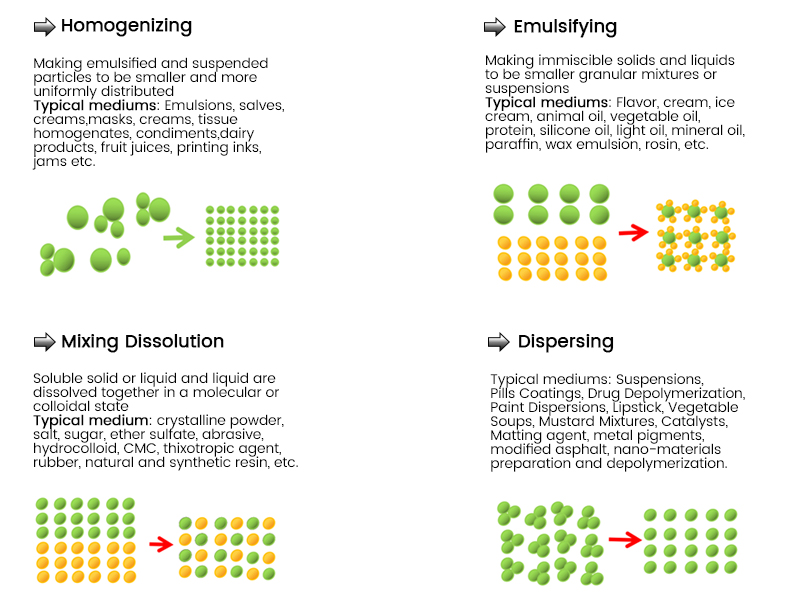

Bonve emulsifying and homogenizing shear pump is an efficient type machine with mixing, dispersion, breaking, dissolution, refinery, homogenization, emulsifying and pumping. The machine can greatly simplify the traditional productions and upgrade the production efficiency and product quality.
It is widely used in petrochemical, refinery chemistry, consumer chemicals, biology pharmaceutics, foods processing, paper-making, environmental protection, pain and so on.
Application for tomato ketchup
Tomato ketchup is a dipping sauce made by mixing concentrated tomato paste with water, sugar, vinegar, salt and other seasonings. Which requires the homogenizer is capable of dispersing powdered ingredients into water to form an agglomerate-free product and dispersing the tomato paste. Where a Bonve homogenizer is used, not only the high shear mixing action will improve pre-mix quality and consistency, but also a homogenous mixture is rapidly obtained.
Working Principle

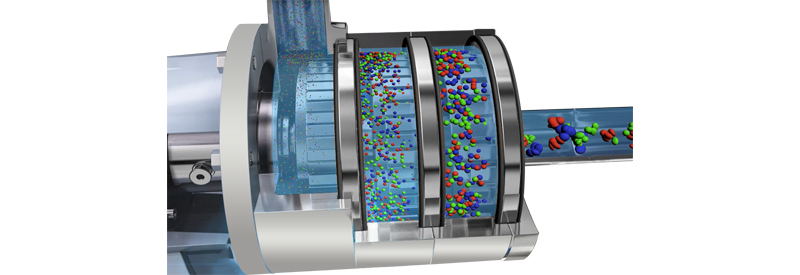

The main parts are stators and rotors. At centrifugal and fluid forces created by high running of the rotors, the stators exercise on the materials with strong power shearing, centrifugal pressing, breaking, fluid friction, turbulent. The processed materials (solid, fluid and gas phase) are quickly refined, homogenized, dis-aggregated and emulsified. The repeat of this process can result in stable and high-quality products.
Product line: FHM1 and FHM3 series
Bonve emulsifying and homogenizing shear pumps are mainly devided into 2 series based on different numbers of rotor and stator, working types. (The pump with 2-stage rotor and stage can be made too)

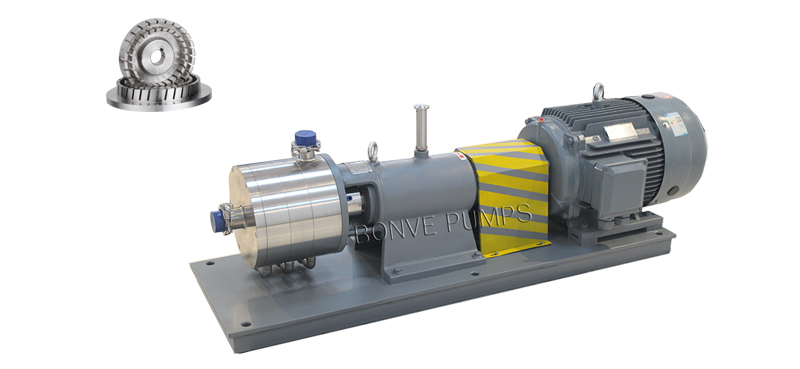

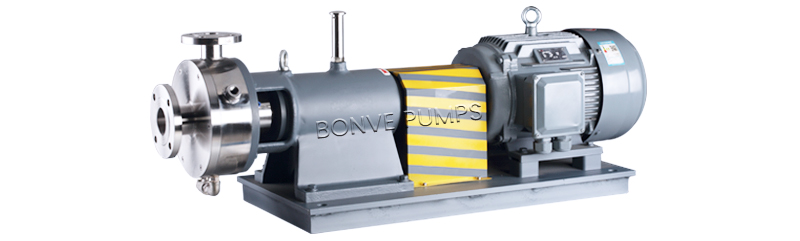

FHM1 series with single stage rotor and stator
FHM1 series is equipped with one set multi-layer stator and rotor. Required to be used in the cyclic processing of medium and small batch production. For short distance transmission, homogeneous and emulsion.

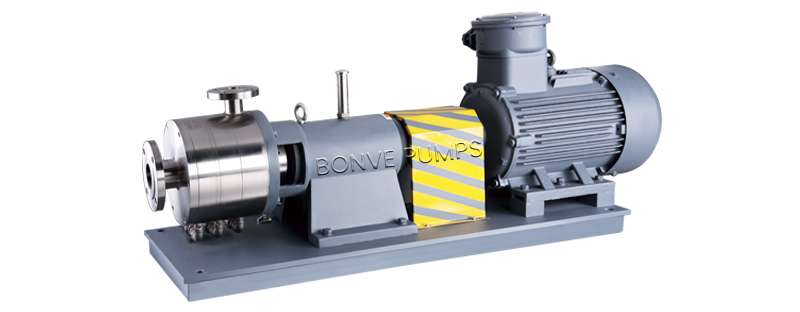

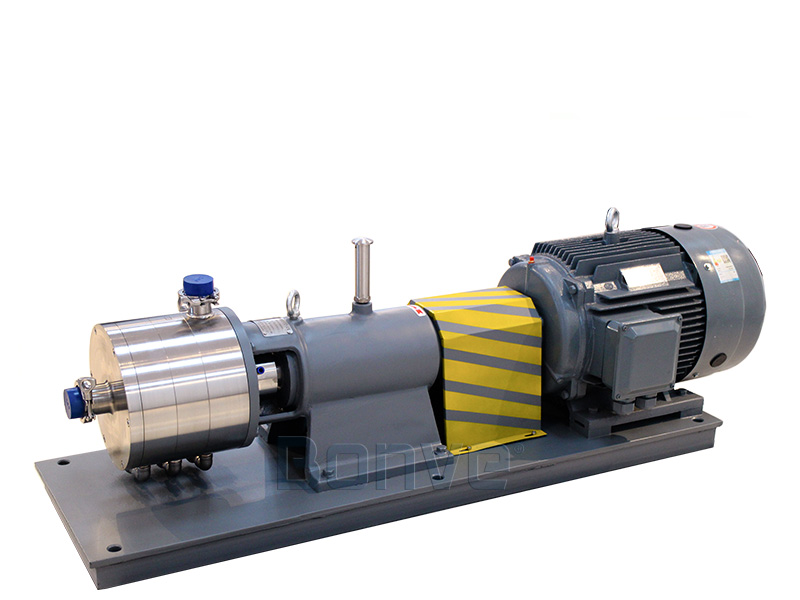

FHM3 series with three stage rotors and stators
FHM3 series is an extension of the FHM1 series. The working chamber is composed of three-stage rotor and stator. For applications that require greater and quicker homogenizing and emulsifying, FHM3 is used. It can be used in the cyclic processing of medium and large-scale production.
Main technical parameters: FHM1
|
Model |
Electrical Power (kW) |
Rotation Speed (r/min) |
Capacity (m3/h) |
Discharge pressure (Mpa) |
Diameter of inlet/outlet |
|
FHM1/165 |
7.5/11 |
2900 |
0-10 |
0.15 |
DN50/40 |
|
FHM1/185 |
11/15 |
2900 |
0-15 |
0.15 |
DN65/50 |
|
FHM1/200 |
15/18.5 |
2900 |
0-20 |
0.15 |
DN80/65 |
|
FHM1/220 |
22/30 |
2900 |
0-30 |
0.15 |
DN80/65 |
|
FHM1/240 |
30/37 |
2900 |
0-50 |
0.20 |
DN100/80 |
|
FHM1/260 |
37/45 |
2900 |
0-60 |
0.20 |
DN125/100 |
|
FHM1/300 |
45/75 |
2900 |
0-80 |
0.25 |
DN125/100 |
Remarks:
1. Above dates are tested by water. For product with poor liquidity or require a higher discharge pressure, Bonve lobe pump is advised to be installed before the homogenizer for transferring.
2. Port size can be changed as needed. Flange connection as starndard, clamp and thread as optional.
3. Motor matched is normal type with 3ph/380V/50Hz as standard.
4. MOC: SS316 as standard, SS304, 316L and others as optional. 150°C (302°F) anti-heat seal.
5. Bonve reserves the right to change specifications without prior notification.
Main technical parameters: FHM3
|
Model |
Electrical Power (Kw) |
Rotation Speed (r/min) |
Flow rate (m3/h) |
Discharge pressure (Mpa) |
Diameter of inlet/outlet |
|
FHM3/165 |
18.5 |
2900 |
0-10 |
0.30 |
DN50/40 |
|
FHM3/185 |
30 |
2900 |
0-20 |
0.30 |
DN65/50 |
|
FHM3/200 |
45 |
2900 |
0-30 |
0.30 |
DN80/65 |
|
FHM3/220 |
55 |
2900 |
0-40 |
0.30 |
DN80/65 |
|
FHM3/240 |
90 |
2900 |
0-60 |
0.30 |
DN100/80 |
|
FHM3/260 |
132 |
2900 |
0-100 |
0.30 |
DN125/100 |
|
FHM3/300 |
160 |
1400 |
0-120 |
0.30 |
DN150/125 |
Remarks:
1. Above dates are tested by water. For product with poor liquidity or require a higher discharge pressure, Bonve lobe pump is advised to be installed before the homogenizer for transferring.
2. Port size can be changed as needed. Flange connection as starndard, clamp and thread as optional.
3. Motor matched is Siemens, ABB or equivalent brand. Normal type with 3ph/380V/50Hz as standard.
4. MOC: SS316 as standard, SS304, 316L and others as optional. 150°C (302°F) anti-heat seal.
5. Bonve reserves the right to change specifications without prior notification.
Applications
Working process

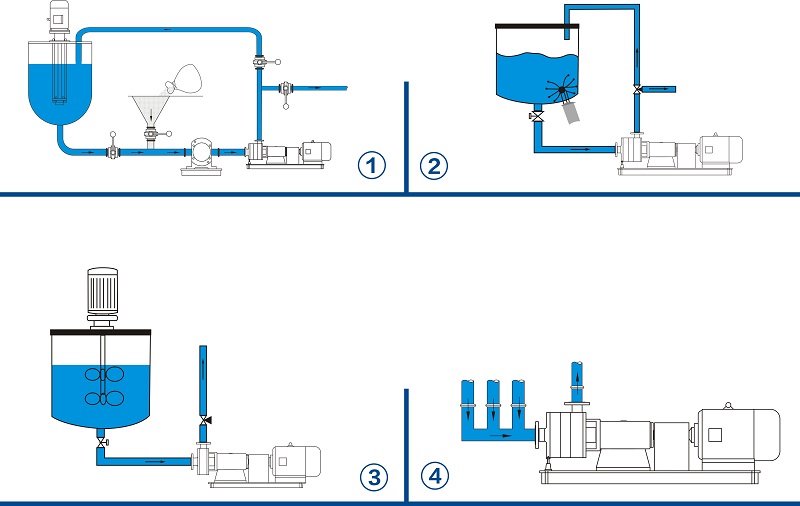

For various processes, different equipment is used to match and optimize the combination, so that the system
achieves the best working effect. The common process flow diagram is as follows:
Selection Guideline
|
Your industry/application |
|
|
Processed medium’s name |
|
|
Medium’s feature |
Sanitary ( ) Corrosive ( ) Poisonous ( ) |
|
Medium’s proportion |
Liquid % ____ Density____ Viscosity____ PH value____ Solid % ____ Solid size ___ |
|
Processing requirement |
Mixing dissolving ( ) Dispersed suspension ( ) Emulsification ( ) Homogeneity ( ) Reaction ( ) Powder liquid mixing ( ) |
|
Working type |
Continuous circulation work ( ) Continuous non-circulation work ( ) Batch type ( ) |
|
Working temperature |
|
|
Particle size |
Before processing _______ After processing ________ |
|
Handling capacity required |
|
|
Delivery head/pressure required |
|
|
Vessel’s dimension |
|
|
Existing pipe size and connection type |
|
|
The existing process equipment and the existing problems |
About us
BONVE is a Chinese leading manufacturer in ROTARY LOBE PUMPS and HOMOGENIZER PUMPS.Providing its customers with customized pumping and mixing solutions and solving their problems during the production.
Bonve pumps and mixers are widely used in food, dairy, beverages, chemical, pulp&paper, soaps & detergents, pharmaceuticals, pesticide, coatings etc. By 2020, Bonve served 4000+ customers in various industries and 50000+ pumps running in the worldwide.
Time and again companies specify Bonve Pumps as the "standard" equipment for their manufacturing processes. We are looking forward to be partner with you.
