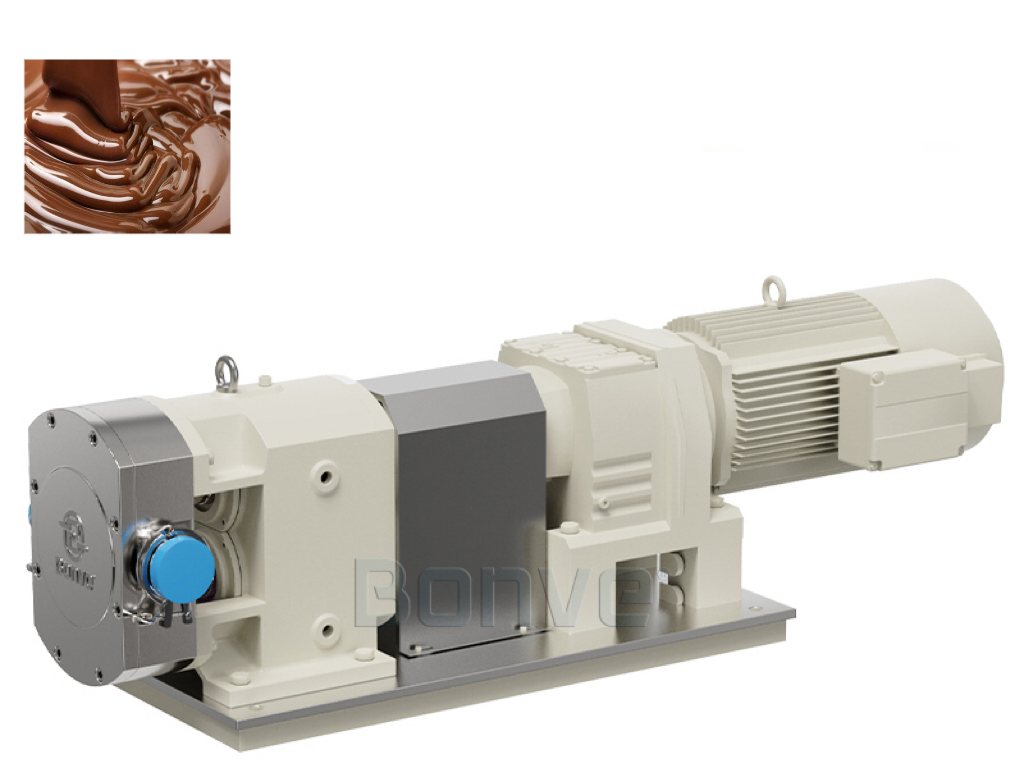

Stainless Steel Food Grade Rotary Lobe Pump for Chocolate Cream

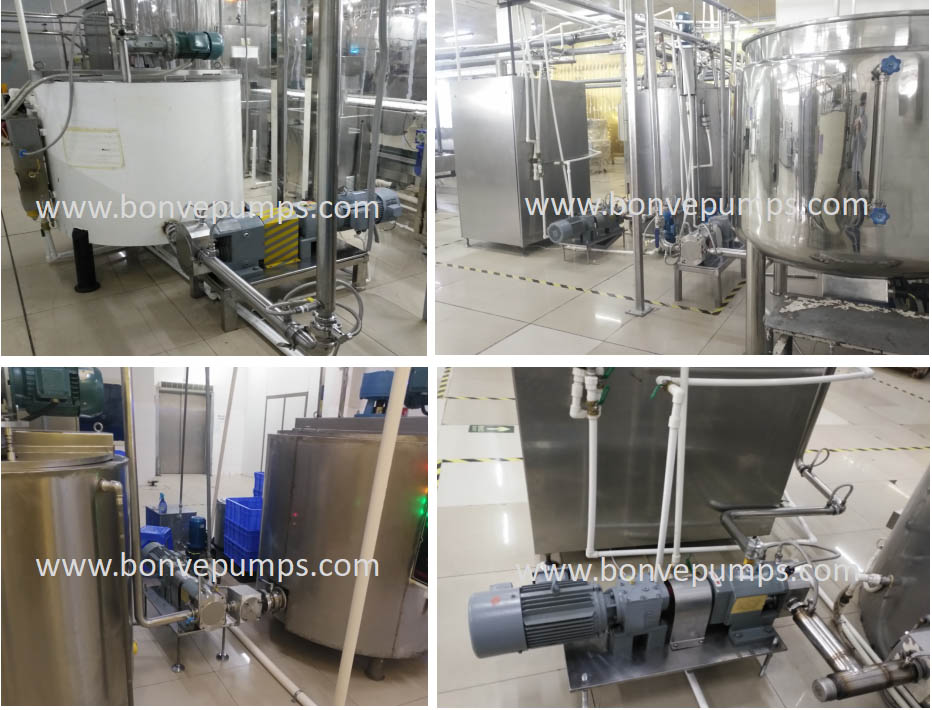

Chocolate is prone to solidification at low temperatures, posing strict requirements for the anti-solidification, startup performance and efficiency of transfer equipment. Bonve jacketed lobe pump is optimized for this specific need, integrating an exclusive jacket design outside the pump chamber. It adopts steam or hot water (flexibly selectable based on on-site working conditions) as the heating medium to achieve circulating heating and constant temperature insulation, ensuring chocolate maintains a smooth liquid state at all times. This effectively solves the problem of low-temperature solidification and guarantees stable equipment startup and continuous efficient transfer.
With its gentle conveying process and hygienic design, the pump does not damage the original texture and flavor of chocolate during transfer, while meeting the rigorous hygiene standards of the food industry. The product is widely suitable for the entire chocolate production process—whether it is chocolate mass transfer, filling operations or molding processes, it can provide stable and reliable transfer support, making it an ideal equipment choice for chocolate manufacturing.
More applications
In addition to chocolate transfer applications,Bonve stainless steel lobe pumps are widely used in the food, dairy, confectionery, beverage, and wine industries. Typical transfer media include: chocolate, condensed milk, cheese, mayonnaise, yogurt, honey, syrup, sucrose, ketchup, tomato paste, butter, concentrated juice, jam, ice cream, milk, yeast slurry, meat paste, jelly, condiments, soy protein, various beverages, and wine.
Why Choose Bonve Stainless Steel Lobe Pump?
Challenges in Transfer
High Viscosity: Thick products clogs pipes and slows flow with ordinary pumps.
Shear Sensitivity: Traditional pumps damageproducts’ structure, ruining texture and quality.
Strict Hygiene: Food-grade standards demand easy cleaning—common pumps fail here.
Bonve’s Targeted Solutions
High-Viscosity Design: Special rotor profiles and optimized clearances enable smooth flow of thick mayonnaise, no clogs.
Gentle Pumping: Low-shear operation preserves mayonnaise’s texture and quality, just like fresh.
Sanitary Build: Food-grade materials and easy-to-clean surfaces meet strict hygiene standards, simplifying disinfection.
Core Benefits for You
Efficient: Faster transfer cuts production time and costs.
Quality-Focused: Maintains product’s consistency, boosting product competitiveness.
Reliable: Minimal maintenance, less downtime—keeps your production running.
How customers' comments on Bonve Lobe pump

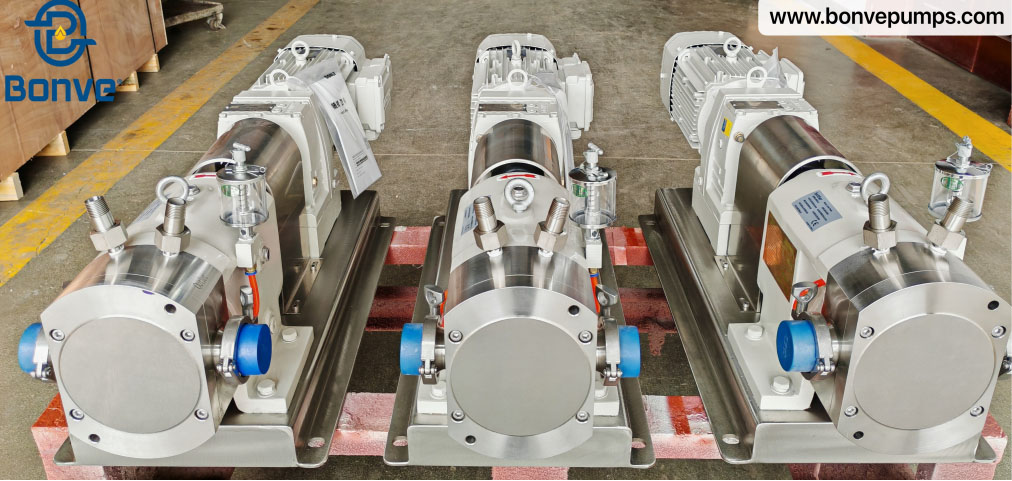

Comment on the pumps surface finish
We worked with are-seller in food industry and they are very happy withBonve lobe pump surface smooth finish and price.
If your team is dealing with similar pain points—whether it's subpar materials, inconsistent finishes, or non-compliant equipment—let's connect. We're here to deliver the same peace of mind and performance to your operations.
Feedback on Bonve lobe pump inner structure and running
We worked withthecompanies in chemical industry and they are satisfied with our pump silent and smooth running. If you want to get rid of such usage troubles of yourexisting pumps, we are ready to provide you with the same high-value solution.
Certificate
Bonve ISO9001, ISO14001, ISO45001 certificates ensure quality consistency, compliance reliability, environmental responsibility, and operational efficiency, delivering trustworthy and sustainable partnerships for our clients.
With CE and FDA certificates,Bonve pumps are globally recognized. These certificates open doors to major markets, and they're a testament to our pumps excellence for you.
About Bonve Rotary Lobe Pump
Bonve Rotary Lobe Pump is A Reliable Choice for Fluid Transfer Across Industries.Whether it’s highly corrosive liquids in the food industry, viscous materials with solid particles in the cehmical sector, or fluids with diverse properties in other fields—Bonve Rotary Lobe Pumps handle them all with ease. Specifically designed for over 3,000 types of fluids, they enable efficient transfer of media with varying viscosities and solid contents, making them widely suitable for needs across different industries.
What’s more, Bonve remains committed to technological innovation. Today, its rotary lobe pumps have been upgraded to the 4th generation. The new-generation products feature further optimized core performance, which significantly extends the pump’s service life—helping you reduce equipment replacement costs and ensure stable production operations.
Interchangeable
· Interchangeable rotors, one pump multi-purpose.
· Targeted seal for specific application, ensure zero leakage.
Easy maintenance
· Compact structure, easy assembling and disassembling
· Maintenance in place, easy cleaning, CIPable and SIPable.
· Few wearing parts, low maintenance.
Long life
· All main parts proceed by CNC, high precision fabrication.
· No contact between the rotors, rotors and pump chamber.
· Six bearings with separate arrangement, high balance.
· Adjustable seal ring extends the shaft life.
· Axis key synchronous adjustment, no rotor collision problem.
Working Principle
Bonve lobe pumps basically consist of two lobe rotors, which rotate synchronously driven by a pair of synchronous gears in the gearbox. The rotors are driven by the main shaft and sub-shaft to rotate in a synchronous reverse direction, which changes the pump capacity, builds up high vacuum and discharge pressure, thus an efficient pumping is formed. Gap is kept between the rotors and between the pump casing, no friction, long life, no damage, no physical and chemical reaction to the pumped products.
Bi-wing rotor diagram
Tri-lobe rotors diagram
Main Parts of the Complete Pump
Bonve complete pumps are usually composed of bare shaft pump, coupling and its guard, geared motor and baseplae. With your order, bare shaft pump or complete pump is supplied.
Bare Shaft Pump Structure
Based on the port direction, we have the pump with horizontal port and vertical port to meet your site installation.
Structure Details
Complete Pump Types
Technical Parameters
|
Model |
Displace -ment |
RPM |
Flow |
Dis. Pre. |
Power |
Vacuum |
Port size |
Max viscosity |
|
|
(L/r) |
(r/min) |
(m³/h) |
(Mpa) |
(kW) |
(Mpa) |
(mm) |
(cp) |
|
25BV12-05 |
0.06 |
10-1000 |
0-0.5 |
0-1.2 |
0.37-1.1 |
-0.080 |
25 |
1,500,000 |
|
40BV12-2 |
0.15 |
10-1000 |
0-2 |
0-1.2 |
0.75-2.2 |
-0.080 |
40 |
1,500,000 |
|
50BV12-5 |
0.32 |
10-800 |
0-5 |
0-1.2 |
1.5-4 |
-0.085 |
50 |
1,500,000 |
|
65BV12-10 |
0.65 |
10-600 |
0-10 |
0-1.2 |
2.2-7.5 |
-0.085 |
65 |
1,500,000 |
|
80BV12-20 |
1.74 |
10-500 |
0-20 |
0-1.2 |
4-15 |
-0.095 |
80 |
1,500,000 |
|
90BV12-30 |
2.60 |
10-500 |
0-30 |
0-1.2 |
5.5-22 |
-0.095 |
100 |
1,500,000 |
|
100BV12-40 |
3.65 |
10-500 |
0-40 |
0-1.2 |
7.5-30 |
-0.095 |
100 |
1,500,000 |
|
125BV12-50 |
4.60 |
10-500 |
0-50 |
0-1.2 |
7.5-37 |
-0.095 |
125 |
1,500,000 |
|
140BV12-70 |
6.10 |
10-500 |
0-70 |
0-1.2 |
11-45 |
-0.095 |
150 |
1,500,000 |
|
150BV12-80 |
7.63 |
10-500 |
0-80 |
0-1.2 |
11-55 |
-0.095 |
150 |
1,500,000 |
|
200BV12-120 |
11.56 |
10-400 |
0-120 |
0-1.2 |
15-75 |
-0.095 |
200 |
1,500,000 |
|
250BV12-150 |
14.22 |
10-400 |
0-150 |
0-1.2 |
18.5-90 |
-0.095 |
250 |
1,500,000 |
|
300BV12-200 |
20.80 |
10-300 |
0-200 |
0-1.2 |
22-110 |
-0.095 |
300 |
1,500,000 |
|
350BV12-300 |
32.60 |
10-250 |
0-300 |
0-1.2 |
45-160 |
-0.095 |
350 |
1,500,000 |
|
400BV12-400 |
50.40 |
10-250 |
0-400 |
0-1.2 |
55-200 |
-0.095 |
400 |
1,500,000 |
Note:
1. Tested medium: water.
2. Speed, flow rate, electrical power and pressure will be varified according to different product properties.
Selection Guidelines
|
Your Industry |
|
||
|
About pump medium |
Name: |
||
|
Density (g/m³): |
|||
|
Viscosity (mPa.s): |
|||
|
Temperature (℃): |
|||
|
PH value: |
|||
|
Solid content (%): |
|||
|
Solid size (mm): |
|||
|
Suction side |
Pressure: Positive ( ) bar; Negtive ( ) bar |
How high (m): |
|
|
Suction pipe length (m): |
Diameter (mm): |
||
|
Bends (Pcs): |
T-piece (Pcs): |
Valves (Pcs): |
|
|
Discharge side |
Pressure (Mpa): |
||
|
Vertical delivery pipe length (m): Total delivery pipe length (m): |
Diameter (mm): |
||
|
Bends (Pcs): |
T-piece (Pcs): |
Valves (Pcs): |
|
|
Required flow rate (L/H) |
Operating flow: |
Max. flow: |
|
|
Pump material required |
SS304 ( ) SS316 ( ) SS316L ( ) Duplex stainless steel ( ) |
||
|
Motor required |
Phase: Single ( ) Three ( ) |
Voltage (V): |
Frequency (Hz): |
|
IP grade: |
Energy efficiency: |
Anti-explosive: |
|
|
Installation type |
Fixed ( ) |
Movable ( ) |
Fixed with adjusting feet ( ) |
|
Others |
|
||
