POSITIVE DISPLACEMENT ROTARY LOBE PUMP 4G (4th generation)
Application for Dairy
Bonve offers the broadest range of its ROTARY LOBE PUMPS for dairy application. As a recognized market leader in pump technology, Bonve has been growing rapidly in the past 17 years since 2001. We make pumps to meet EHEDG, 3-A standards. Through the cumulative experience and technology, Bonve has supplied products satisfying customer by 100%
Typically pumped media: butter, cheese, cream, egg, ice cream, milk, whey, yogurt.
Applications: Blending, Drying, Mixing, Recovery, Separation, Transfer
Over the years, Bonve has been focused on communication with customers and constantly optimize our pumps to be low maintenance, long-life cycle and environmental friendly, so far BONVE ROTARY LOBE PUMPS have been developed to the 4th generation (4G), which further extends the service life of the pump.
The extensive application of Bonve 4G pumps in various fields benefits from innovative structural design and large experience accumulation, featured interchangeable, easy maintenance and long life.
Interchangeable
- Interchangeable rotors, one pump multi-purpose.
- Targeted seal for specific application, ensure zero leakage.
Easy maintenance
- Compact structure, easy assembling and disassembling
- Maintenance in place, easy cleaning, CIPable and SIPable.
- Few wearing parts, low maintenance.
Long life
- All main parts proceed by CNC, high precision fabrication.
- No contact between the rotors, rotors and pump chamber.
- Six bearings with separate arrangement, high balance.
- Adjustable seal ring extends the shaft life.
- Axis key synchronous adjustment, no rotor collision problem.
Working Principle

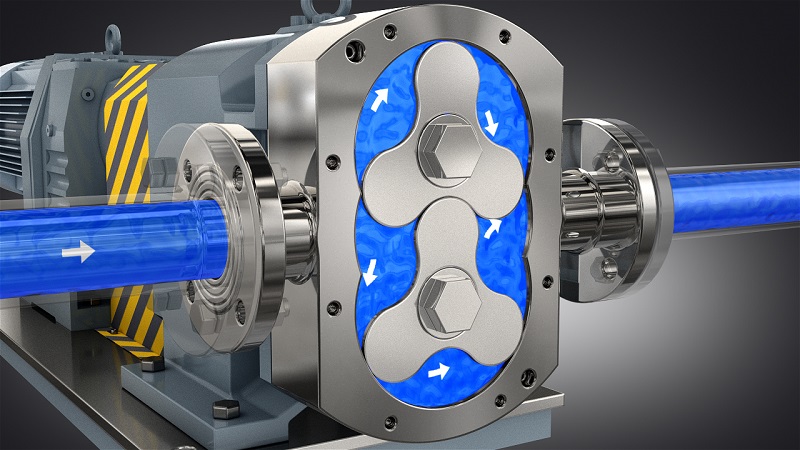

Bonve lobe pumps basically consist of two lobe rotors, which rotate synchronously driven by a pair of synchronous gears in the gearbox. The rotors are driven by the main shaft and sub-shaft to rotate in a synchronous reverse direction, which changes the pump capacity, builds up high vacuum and discharge pressure, thus an efficient pumping is formed. Gap is kept between the rotors and between the pump casing, no friction, long life, no damage, no physical and chemical reaction to the pumped products.

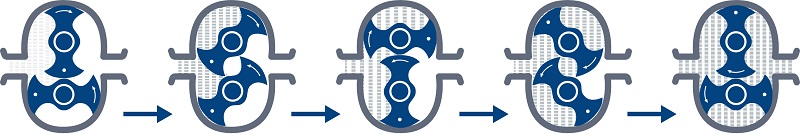

Bi-wing rotor diagram

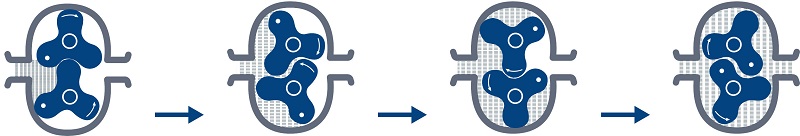

Tri-lobe rotors diagram

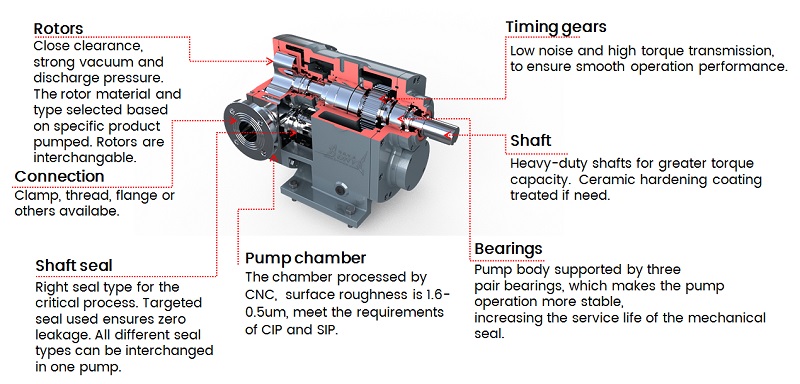

Main Parts of the Complete Pump

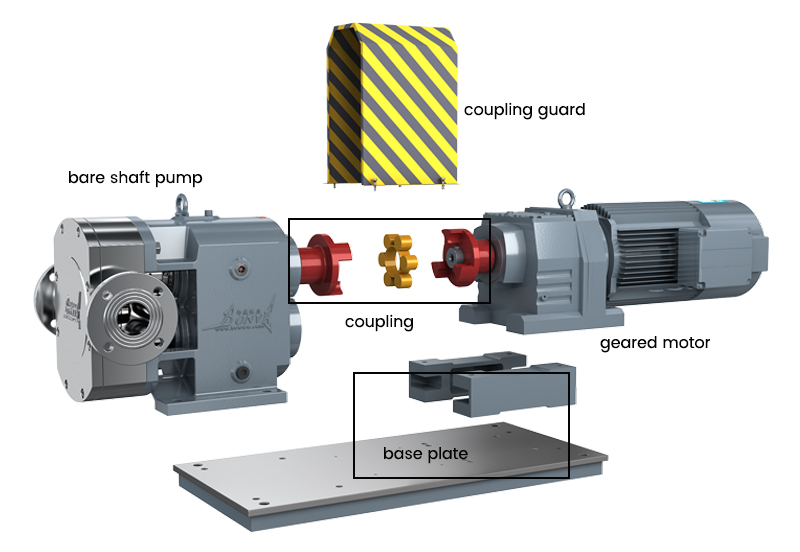

Bonve complete pumps are usually composed of bare shaft pump, coupling and its guard, geared motor and baseplae. With your order, bare shaft pump or complete pump is supplied.

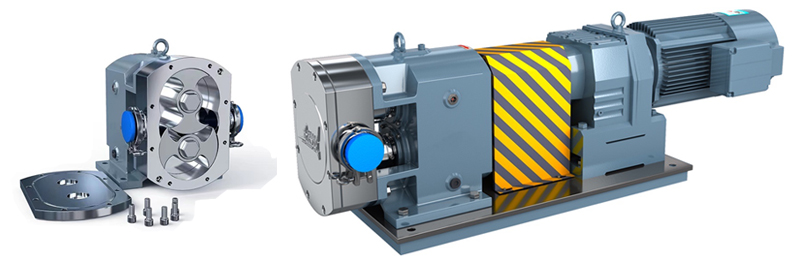

Bare Shaft Pump Structure

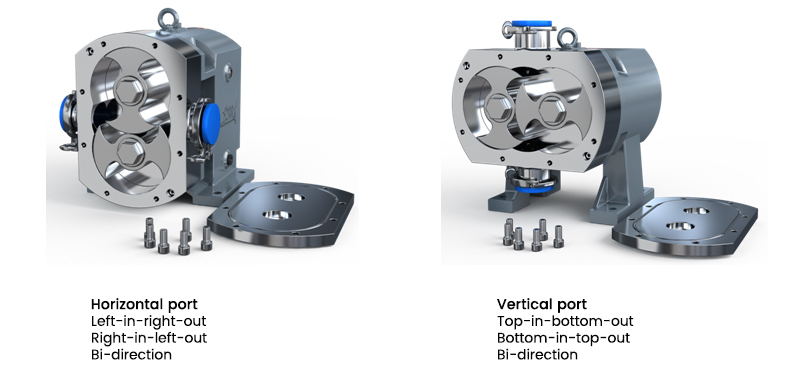

Based on the port direction, we have the pump with horizontal port and vertical port to meet your site installation.
Structure Details

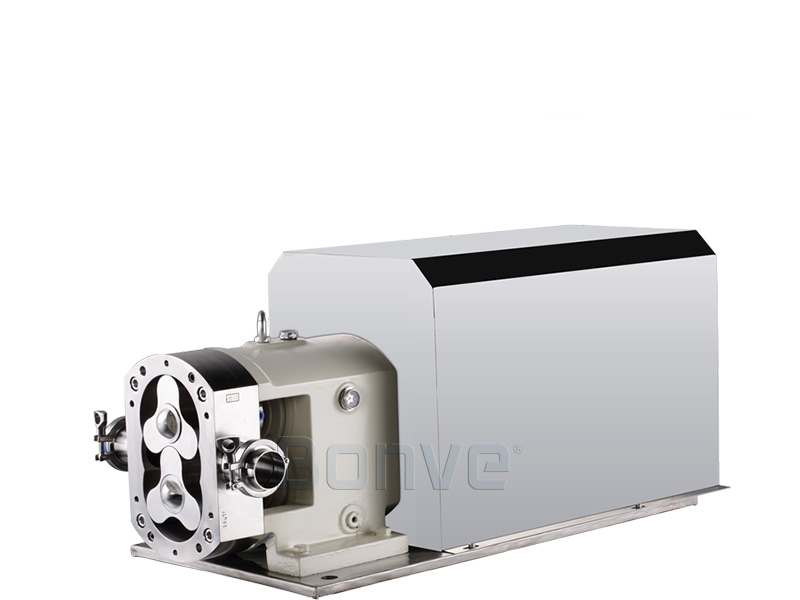

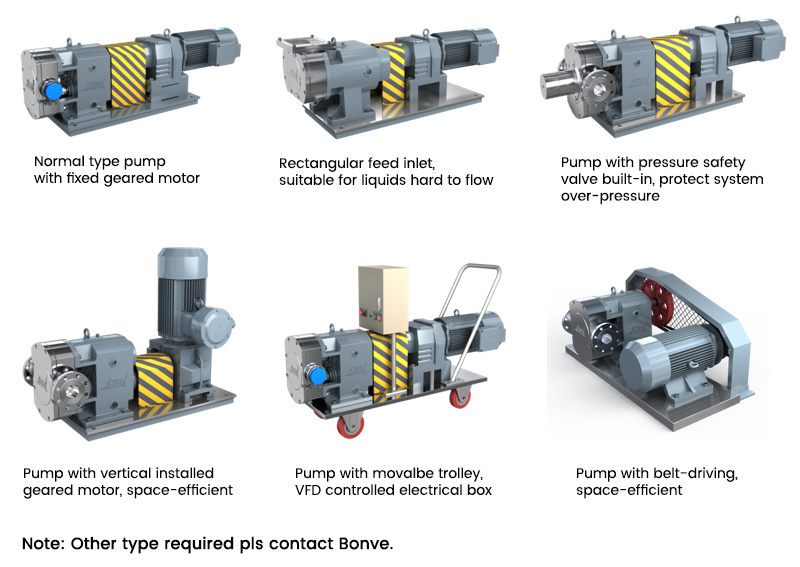

Complete Pump Types
Technical Parameters
Displace
-ment
Max
viscosity
1,500,000
Model
RPM
Flow
Dis. Pre.
Power
Vacuum
Port size
(L/r)
(r/min)
(m³/h)
(Mpa)
(kW)
(Mpa)
(mm)
(cp)
25BV12-05
0.06
10-1000
0-0.5
0-1.2
0.37-1.1
-0.080
25
1,500,000
40BV12-2
0.15
10-1000
0-2
0-1.2
0.75-2.2
-0.080
40
1,500,000
50BV12-5
0.32
10-800
0-5
0-1.2
1.5-4
-0.085
50
1,500,000
65BV12-10
0.65
10-600
0-10
0-1.2
2.2-7.5
-0.085
65
1,500,000
80BV12-20
1.74
10-500
0-20
0-1.2
4-15
-0.095
80
1,500,000
90BV12-30
2.60
10-500
0-30
0-1.2
5.5-22
-0.095
100
1,500,000
100BV12-40
3.65
10-500
0-40
0-1.2
7.5-30
-0.095
100
1,500,000
125BV12-50
4.60
10-500
0-50
0-1.2
7.5-37
-0.095
125
1,500,000
140BV12-70
6.10
10-500
0-70
0-1.2
11-45
-0.095
150
1,500,000
150BV12-80
7.63
10-500
0-80
0-1.2
11-55
-0.095
150
1,500,000
200BV12-120
11.56
10-400
0-120
0-1.2
15-75
-0.095
200
1,500,000
250BV12-150
14.22
10-400
0-150
0-1.2
18.5-90
-0.095
250
1,500,000
300BV12-200
20.80
10-300
0-200
0-1.2
22-110
-0.095
300
1,500,000
350BV12-300
32.60
10-250
0-300
0-1.2
45-160
-0.095
350
1,500,000
400BV12-400
50.40
10-250
0-400
0-1.2
55-200
-0.095
400
1. Tested medium: water. Your liquid's density, viscosity and temperature are necessary to supply when choose the pump.
2. Speed, flow rate, electrical power and pressure will be varified according to different liquid properties.
3. Port size can be changed as needed.
Selection Guidelines
Vertical delivery pipe length (m):
Total delivery pipe length (m):
Phase: Single ( )
Three ( )
Your Industry
About pump medium
Name:
Density (g/m³):
Viscosity (mPa.s):
Temperature (℃):
PH value:
Solid content (%):
Solid size (mm):
Suction side
Pressure: Positive ( ) bar; Negtive ( ) bar
How high (m):
Suction pipe length (m):
Diameter (mm):
Bends (Pcs):
T-piece (Pcs):
Valves (Pcs):
Discharge side
Pressure (Mpa):
Diameter (mm):
Bends (Pcs):
T-piece (Pcs):
Valves (Pcs):
Required flow rate (L/H)
Operating flow:
Max. flow:
Pump material required
SS304 ( ) SS316 ( ) SS316L ( ) Duplex stainless steel ( )
Motor required
Voltage (V):
Frequency (Hz):
IP grade:
Energy efficiency:
Anti-explosive:
Installation type
Fixed ( )
Movable ( )
Fixed with adjusting feet ( )
Others
