When the rotary lobe pump used, the medium is high viscosity or contains particles, after the long time using, there may be dirt residue in the pump body. Therefore, it is necessary to clean the rotor pump regularly. Eliminate the slight hidden danger by periodically cleaning the rotor to ensure long-term stability, high quality operation.

Then how to disassemble the rotor of Bonve Rotary lobe pump?

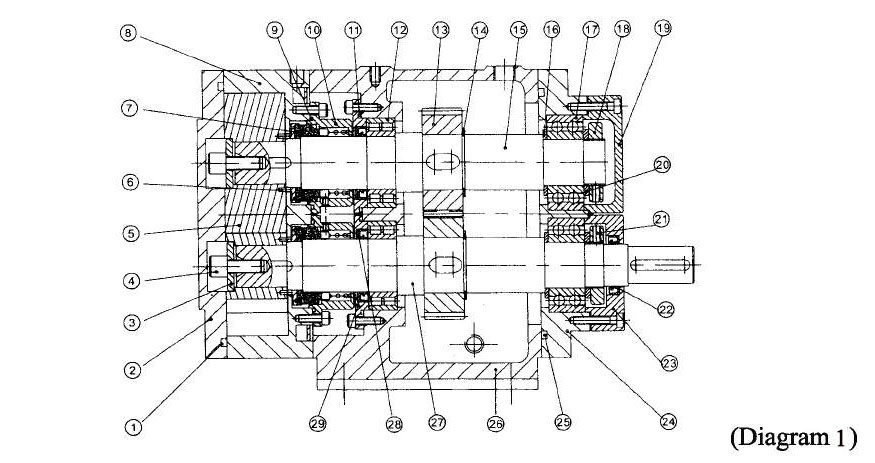

1. Pulling out holding screw between pump cover (2) and pump body (8), meanwhile take out the pump cover O-ring (1).

2. Dismantle the rotor lock (4) and shim (3) from main shaft (27) and

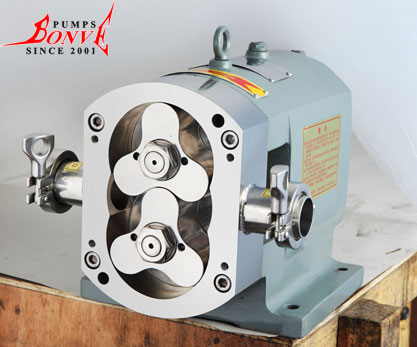

sub-shaft (15), then pull out the rotor (5) with special lamar. When install the rotor, please note, two locating pin of rotor must insert the two notch of mechanical seal ring. (diagram 2)

3. Attention: all dismounting parts should be put on soft clean place, guard against any friction or collision.

4. Check each of the parts while cleaning. If there is any galling or collision, it must be fixed.

5. The assembling procedures are adverse to the dismantling procedures. When fix the pump body, please note two locating pin holes on the pump body, one of which has a stamp mark next to the hole, and its direction is upward; when fix the pump cover, the stamp mark on the side of the pump cover should be aligned with the stamp mark on the side of the pump body. (diagram 3)
